Y-2006-1-H00AA Reliance Servo Motor, Repair Available



Item Description

  • Manufacturer: Reliance
  • Model #: Y-2006-1-H00AA or Y20061H00AA
  • Category: Servo Motor
  • AC Servo Motor
  • .69 N.M
  • 4500 RPM
  • 115V
  • 1.72KG
  • Item Weight: 5 lbs.
  • Estimated Retail Price: $2,100.00
  • Save as much as 87% - see more below.

Buy Options In-Stock Warranty Our Price
New 0 1 Year Out of Stock
Remanufactured Help  Remanufactured 0 1 Year Out of Stock
As Is Help  As Is
1 No Warranty $275.00

Turn-Around Warranty Our Price
Repair Help  Repair
Not Repairable Not Available
Exchange Help  Exchange Not Available

Nationwide Service

We repair and ship nationwide. It's fast, and costs less than you think.

Learn More. link




Download Our Cut Sheets

Download our cut sheets in PDF format for printing or off-line viewing.
 Repair Zone Overview  Servo Repair Overview  Electronics Repair Overview

Buy As Is

  • No Warranty
  • Available Today
  • You can buy the Reliance Y-2006-1-H00AA (Y20061H00AA) as-is for $275.00. Generally, as-is items are sold and used for parts, repairs, or other reasons. It may work, but we can not fully test it. Feel free to call us at 989-922-0043 before you buy if you have questions.

Repair Information

  • 1 Year Warranty
  • Lead Time is 3-5 Days
  • The Y-2006-1-H00AA (Y20061H00AA) unit is available for repair. Ship us your broken Servo Motor, and we’ll fix it fast with a 1 Year Warranty. Standard turn-around is 3-5 days, but rush service is available.

Additional Information

  • Standard repair pricing generally does not include cost to rewind stator, excessive machine work or encoder repair / replacement. If required, these will be quoted in addition to the normal repair pricing and may add to the standard lead time.

Product Video - Servo Motor Repair Process at REPAIR ZONE

Why choose Repair Zone as your servo motor and industrial electronics repair source?

  • 1. FAST SERVICE
  • 2. Experienced Technicians
  • 3. Full Service Facility
  • 4. Huge Inventory of Motors and Parts
  • 5. Thorough Testing Procedures
  • 6. Great Customer Service
Remanufacture and Repair Process for Servo Motors

Our procedures require that all major electrical and mechanical components making up the servo motor are independently tested upon motor disassembly. You can be assured that your motor will go through the following process:

  • 1. We first run a Meg test to check and see if any moisture potentially grounded motor. If moisture has compromised the stator, the motor is disassembled and the windings are washed and baked. Afterwards, the unit is Meg tested again.

    Detailed Mechanical Tolerance Check

  • 2. We check the bearings, housing, and end bells for wear and/or damage.
  • 3. We check the bearing seats to ensure that they within correct tolerance. Also, we look over the shaft to verify straightness and the condition of the shaft extension. If anything is worn or out of spec we machine it to proper specs.

    In-house Machining Center

  • 4. We check connectors, encoder covers, release voltage, and independent torque testing of all brake assemblies.
  • 5. We check to verify that each feedback device -- encoder, resolver, hall sensor, tachometer -- to make sure they are counting/functioning properly. If bad, we either repair or replace the part.
  • 6. We do a Back EMF test; this checks the magnetic strength of the rotor.

    In-house Winding Department

  • 7. We Surge Test the stator and do a complete electrical winding evaluation to verify the quality of the winding; if the stator fails we rewind it, in-house. Then we dip it in epoxy resin and bake it to set the finish on the windings.
  • 8. We replace all bearings with high grade shielded bearings for long life and performance.
  • 9. We replace all seals, O-rings, connectors, and any necessary worn or damaged part.
  • 10. Reassemble and align the motor back to manufacture specs.
  • 11. After all necessary repairs are performed; the motor is run tested with a manufacturers drive and complete servo system to simulate your machine, for data (e.g. amp, voltage, RPM). Load testing is optional and performed to match the manufacturers torque/speed curve at a minimum of 3 different run speeds.
  • 12. Buff and paint the motor and create new nameplates when needed. Our custom foam packaging system protects the motor in transit and returns to your facility in a new in box state.

Get Help Now! Repair Now

For a precise quote and a fast turnaround, Get a repair slip

Or, browse our Servo Motors for repair, exchange, or purchase.

Would you rather talk to a tech? Call us at 989-922-0043 and we would be happy to help!

Read More link

Product Image Gallery

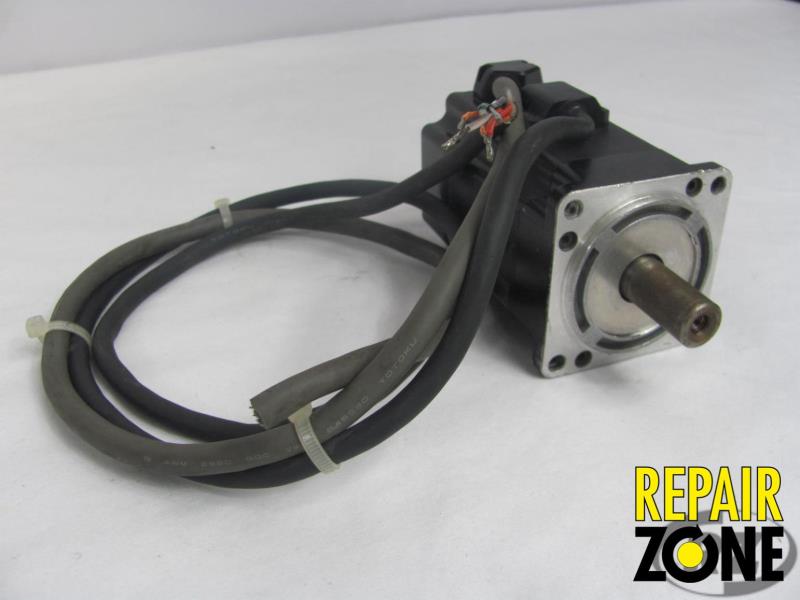

Reliance Y-2006-1-H00AA
