A06B-0148-B088#7076 Fanuc Servo Motor, Remanufactured Available For $3,933



Item Description

  • Manufacturer: Fanuc
  • Model #: A06B-0148-B088#7076 or A06B0148B0887076
  • Category: Servo Motor
  • Series A22/3000
  • SEALED AC SERVO MOTOR
  • MODEL A22/3000
  • STRAIGHT SHAFT
  • WITH KEYWAY
  • a1000 ENCODER
  • Item Weight: 75 lbs.
  • Estimated Retail Price: $5,226.00
  • Save as much as 42% - see more below.

Buy Options In-Stock Warranty Our Price
New 0 1 Year Out of Stock
Remanufactured Help  Remanufactured
1 1 Year $3,932.50 Oversized Item, Please call 989-922-0043
As Is Help  As Is Out of Stock

Turn-Around Warranty Our Price
Repair Help  Repair
3 - 5 days 1 1 Year $3,025.00
Exchange Help  Exchange Not Available

Nationwide Service

We repair and ship nationwide. It's fast, and costs less than you think.

Learn More. link




Download Our Cut Sheets

Download our cut sheets in PDF format for printing or off-line viewing.
 Repair Zone Overview  Servo Repair Overview  Electronics Repair Overview

Buy Remanufactured

  • 1 Year Warranty
  • Available to Ship in 3 Days
  • We have this Servo Motor Series A22/3000 Available to Ship in 3 Days in a remanufactured condition. This means that the Fanuc A06B-0148-B088#7076 (A06B0148B0887076) is used but has been restored by our expert techs, and comes with a 1 Year Warranty.

Repair Information

  • 1 Year Warranty
  • Lead Time is 3-5 Days
  • The A06B-0148-B088#7076 (A06B0148B0887076) unit is available for repair. Ship us your broken Servo Motor Series A22/3000, and we’ll fix it fast with a 1 Year Warranty. Standard turn-around is 3-5 days, but rush service is available.

Additional Information

  • Standard repair pricing generally does not include cost to rewind stator, excessive machine work or encoder repair / replacement. If required, these will be quoted in addition to the normal repair pricing and may add to the standard lead time.

Product Video - Fanuc AC Spindle Motor Repair

If your machine has stopped working or is acting up, and you have pinpointed the issue to your spindle motor, you can send it to Repair Zone for a free evaluation.


We can quickly diagnose the issues you are having through a myriad of testing procedures.
We test the ohms with a Megger tester to see if the stator is good or is grounded.
During disassembly:

·         We find a cracked fan cover that needs replacement.
·         The fan assembly is then taken apart; the fan motor is surge tested to check the strength of the insulation.
·         We check the gap of the speed sensor
·         We test the off-set
·         Using a digital oscilloscope, the amplitude is measured.
·         We then remove the speed sensor wheel by applying heat, along with opposite pulley end bell.
·         The rotor is removed from the stator – and the bad bearings removed.

The technician visually inspects the motor windings, and the bore of the stator for obvious trouble spots.  The stator is then surge tested as well, where all 3 phases are tested for dielectric strength of the insulation.  In this case, the stator was good.

The entire unit is washed thoroughly using both a high-pressure sprayer and a parts washing machine, removing all contamination that had built up.  It is then baked over-night in our oven.

During assembly, new bearings are installed; the stator is megged again after the wash and bake; rotor is put into place; motor housing and end bell are installed.  Final testing occurs as amplitude is measured again.

Next, the spindle is connected to a Fanuc amplifier and ran in both directions, stopping and starting multiple times until testing is completed.  The speed sensor is tested for proper specs after assembly as well.

Finally, the completed unit is returned to you with a 1 year warranty.

“Repair Zone – Your Fanuc Spindle Motor Experts”
Read More link

Product Image Gallery

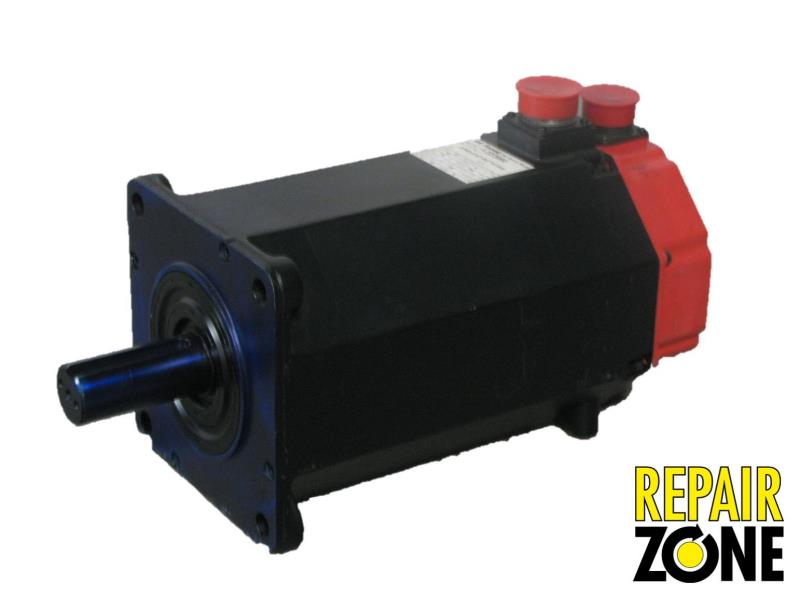

Fanuc A06B-0148-B088#7076

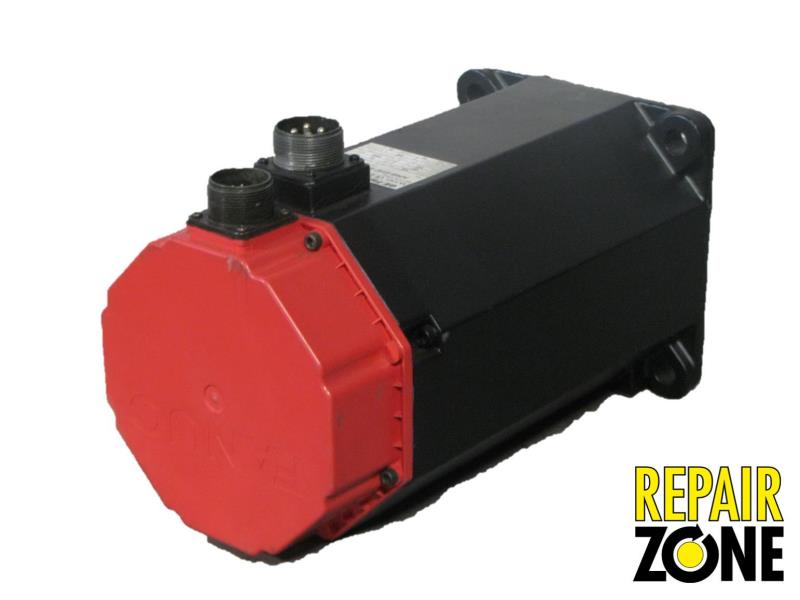

Fanuc A06B-0148-B088#7076

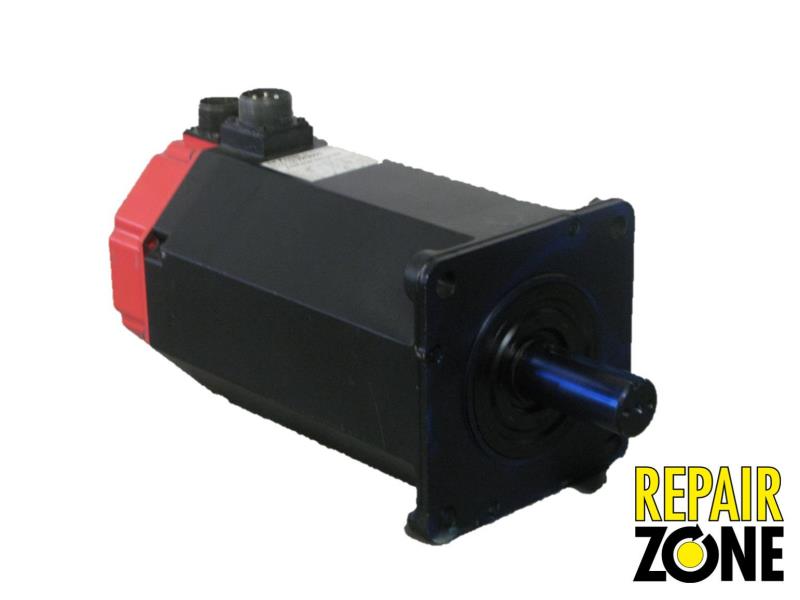

Fanuc A06B-0148-B088#7076
